In modern food processing facilities, operational efficiency is closely tied to Environmental Health and Safety (EHS) compliance. While managing raw ingredient throughput is a primary goal for plant managers, managing processing byproducts—specifically airborne dust and mechanical noise—is equally critical.

When processing fine powders like wheat, rye, or specialized alternative flours, an open or poorly engineered flour sifter can create significant workplace hazards. Flour dust serialization increases the risk of combustible dust explosions (complying with ATEX directives) and compromises respiratory health on the factory floor. Concurrently, continuous high-decibel machinery noise can contribute to operator fatigue and violate occupational noise exposure limits.

Addressing these challenges requires deploying specialized screening equipment, such as an engineered vibrating screen. The industrial Rotary Vibrating Sieve addresses these challenges directly through structured mechanical containment and vibration isolation.

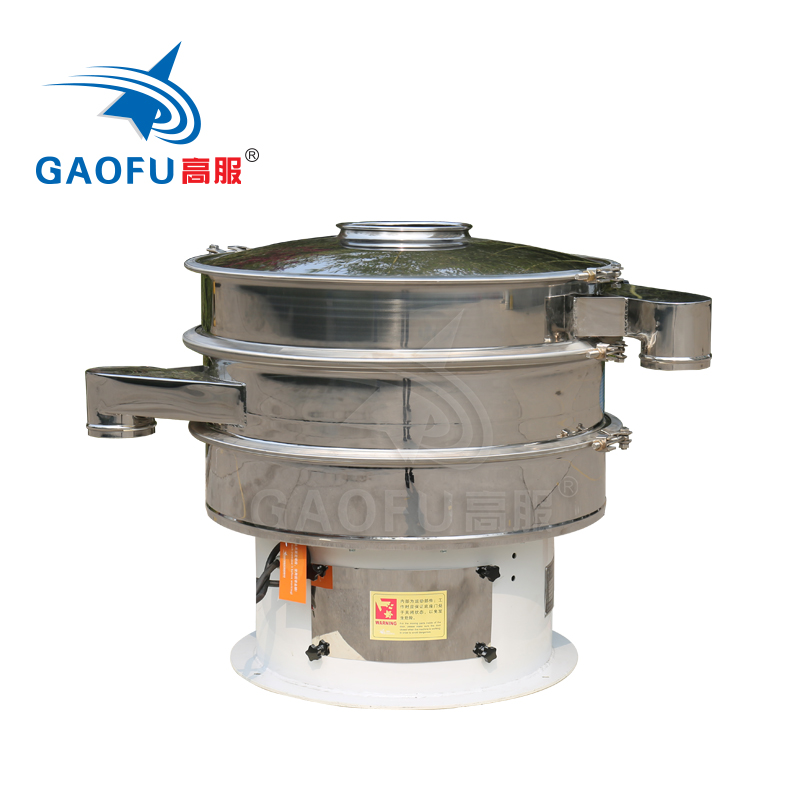

As shown in the equipment assembly above, modern industrial sieves utilize a completely modular, stacked architecture. Every deck boundary is mechanically bound to ensure that fine particulate matter remains entirely within the active screening zone during high-frequency operation.

Technical Mechanisms for Total Dust Containment

Flour particles can be smaller than 100 micrometers, allowing them to remain suspended in ambient air if allowed to escape the machinery envelope. To achieve effective dust control, the Rotary Vibrating Sieve employs a sealed-atmosphere engineering strategy:

• Positive Mechanical Compression: Rather than relying on simple gravity-fit covers, industrial rotary sieves utilize high-tension quick-release toggle clamps or specialized V-band frame bands. These components apply uniform downward pressure across the rim of each screen deck.
• Food-Grade Elastomeric Gaskets: Precision-molded silicone, EPDM, or Viton gaskets are seated within machined grooves between each stainless steel deck section. When compressed, these seals expand to eliminate microscopic gaps, preventing dust from leaking even under positive pneumatic pressure.
• Flexible Connection Sleeves: Where the sieve connects to upstream feeding hoppers or downstream blenders, flexible, dust-tight polyurethane sleeves are utilized. This accommodates the three-dimensional movement of the machine without transmitting stress or allowing dust leakage at the junction points.

Engineering Strategies for Structural Noise Reduction

A vibrating screen operates by transmitting kinetic forces into the material bed. If these forces are poorly managed, they can transfer into the factory floor, causing resonant structural noise and accelerating building wear. The Rotary Vibrating Sieve limits sound propagation below typical regulatory thresholds (frequently keeping operational noise less than 75 decibels under standard load conditions) through several design features:

Vibration Isolation Springs

The entire processing assembly sits on a perimeter array of heavy-duty, high-tensile steel compression springs. These springs are precisely calibrated to match the dynamic mass of the sieve decks and motor. Their function is to absorb the residual kinetic energy generated by the eccentric weights, ensuring that the high-frequency motion remains concentrated on the screen cloth where the work happens, rather than transferring into the supporting base frame or the factory floor.

Balanced Dual-Weight Drive Motors

The vertical vibration motors are engineered with precision-balanced eccentric blocks. Plant operators can adjust these weights to fine-tune material retention time without altering the motor's core operating frequency. This balanced distribution of force eliminates erratic mechanical rattling and structural harmonics, resulting in a smooth, consistent hum during continuous operation.

Environmental and Safety Compliance Summary

The table below outlines how the structural design choices of a Rotary Vibrating Sieve translate directly into operational compliance on the food production floor:

Factory Challenge	Legacy Screening Impact	Rotary Vibrating Sieve Mitigation	Regulatory/Operational Benefit
Airborne Fine Dust	High concentration of fugitive particles; elevated explosion risks.	Fully enclosed frame chambers with food-grade silicone seals.	Supports OSHA dust compliance and reduces extraction system loads.
Structural Resonance	Vibration transmission into floors, causing secondary acoustic hums.	Heavy-duty compression springs isolate kinetic energy.	Protects structural infrastructure and lowers ambient decibel levels.
Allergen Migration	Cross-contamination via floating ambient powder currents.	Dust-tight atmosphere separates distinct processing lines.	Protects product batch purity and prevents cross-contact.

EHS Implementation Note: When designing a flour processing line, ensure that the electrical enclosures and connection boxes on your Rotary Vibrating Sieve meet local dust-ignition-proof ratings (such as Class II, Division 1 or ATEX Zone 21/22 zones) to guarantee complete electrical safety in powder-handling environments.

By prioritizing sealed mechanical architecture and robust kinetic isolation, food processors can successfully maintain high-capacity flour sifting operations while cultivating a clean, quiet, and safe manufacturing environment that aligns with international regulatory standards.
