Long Service Life of Mesh
|
Precision Machined Parts
|
Ultra-light Material Design
|
||
| The quality is the first factor that affects the mesh life, but for centrifugal sifter, the equipment structure, the concentricity of the equipment and the processing technology of the screen cage directly affect the mesh life. | The key components of the equipment need to go through multiple precision machining processes, one is to extend the life of the mesh, the second is to improve output. | Centrifugal sieve design principles, more suitable for screening of ultra-light, multi-fiber material. | ||
|
Easy To Clean
|
Series In The Air System
|
|||
| Centrifugal sieve clean conveniently, suitable for many varieties of small batch screening, to avoid cross-contamination caused by mixing | Centrifugal sieve can withstand the pressure of 0.1MPA, suitable for flour etc, positive pressure system, the screening output is large . |
The mesh of the machine is cylindrical and is placed in the machine body. After the material is mixed with the air flow through the screw conveying system, and atomized into the screen cylinder. Through the wheel blades in the screen cylinder, the material is subjected to centrifugal force and cyclone propulsion force simultaneously, so that the material is sprayed over the mesh, the material smaller than the mesh hole is discharged from the fine material outlet, and the material bigger than the mesh hole is discharged along the tube wall discharged from the coarse material outlet to achieve the purpose of efficient screening.
YATAI PHARME
Chinese medicine powder

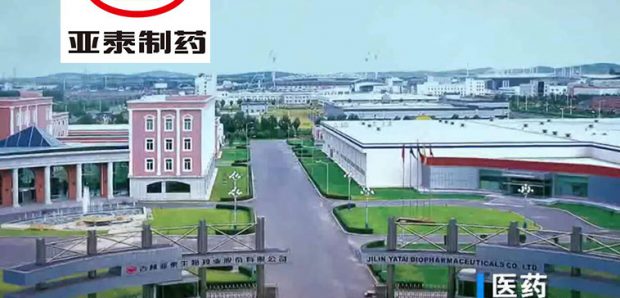

Jilin YATAI PHARME is a subsidiary of Jilin Yatai (Group) Co., Ltd., which is one of the top 500 Chinese enterprises. Founded in March 1994, Jilin YATAI PHARME is a provincial high-tech enterprises specialized in research and development, production and sales of biological products. ...
Beijing Tongrentang
Chinese medicine powder
Beijing tongrentang is a century-old Chinese shop, which is the pride of all Chinese."Although the processing of the complex will not be able to save labor, the taste is not dare to reduce the material power", tong ren tang's strict requirements on the purchase and production, achieve its century-old shop. ...
| Model | Capacity（kg/h） | Processing accuracy（%） | Screen mesh | Cage diameter（mm） | Cage length（mm） | Network surface area（m²） | Gap between blade and screen（mm） | Spindle speed（r/min） | Power（kW） |
| QLSP18-65 | 3000 | ≥85 | 5~500 | 180 | 650 | 0.36 | 3~10 | 815~1110 | 2.2 |
| QLSP30-100 | 5000 | 300 | 1000 | 0.94 | 820~980 | 4 | |||
| QLSX30-80 | 5000 | 300 | 800 | 0.75 | 820~980 | 4 | |||
| QLSS20-65 | 3500 | 200 | 650 | 0.4 | 1450 | 2.2 | |||
| QLSZ20-65 | 3500 | 200 | 650 | 0.4 | 1450 | 2.2 | |||
| QLSZ40-90 | 5000 | 400 | 900 | 1.1 | 960 | 5.5 | |||
| QLSL20-60 | 30m³/h | 200 | 600 | 0.37 | 5~10 | 960 | 1.5 |
Note 1: The processing capacity takes flour as an example, and the screening mesh is 30 mesh.
Note 2: The substances processed by QLSL200-600 take traditional Chinese medicine preparations as an example, and the screening mesh size is 30 mesh.
Lead tetraoxide
Plastic
Activated carbon
Feed
Chinese medicine formula particles
Chinese medicine powder
